LM78L05ACH specific voltage regulator that provides a fixed 5V output. (NOS GOLD PIN)

The LM78L05ACH is a specific type of linear voltage regulator that provides a fixed 5V output. It is a part of the LM78LXX family, which are known for being simple to use and requiring minimal external components.

Key Features and Specifications

 * Output Voltage: Fixed at 5V, with a tolerance of \pm5\% over the temperature range.

 * Output Current: It can provide an output current up to 100 mA with proper heat sinking.

 * Input Voltage: The input voltage must be higher than the output voltage to function properly, with a typical range of 7V to 20V and a maximum of 35V.

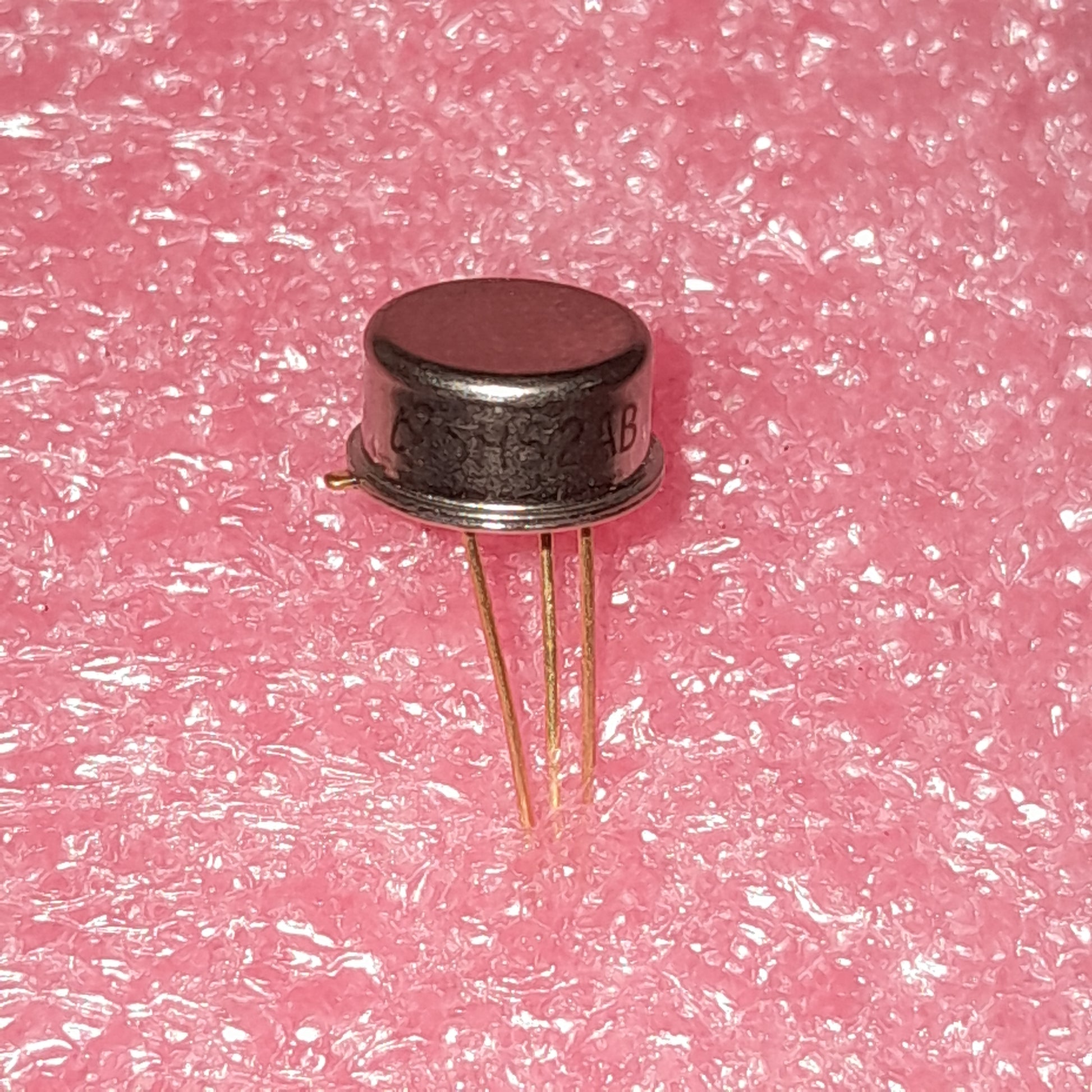

 * Package: The "H" in the part number signifies the package type. It is a metal can, specifically the TO-39 package. This differentiates it from the "Z" version (LM78L05ACZ), which comes in a plastic TO-92 package.

 * Protection: Like other members of the LM78L series, it includes built-in thermal overload and short-circuit protection to prevent damage.
