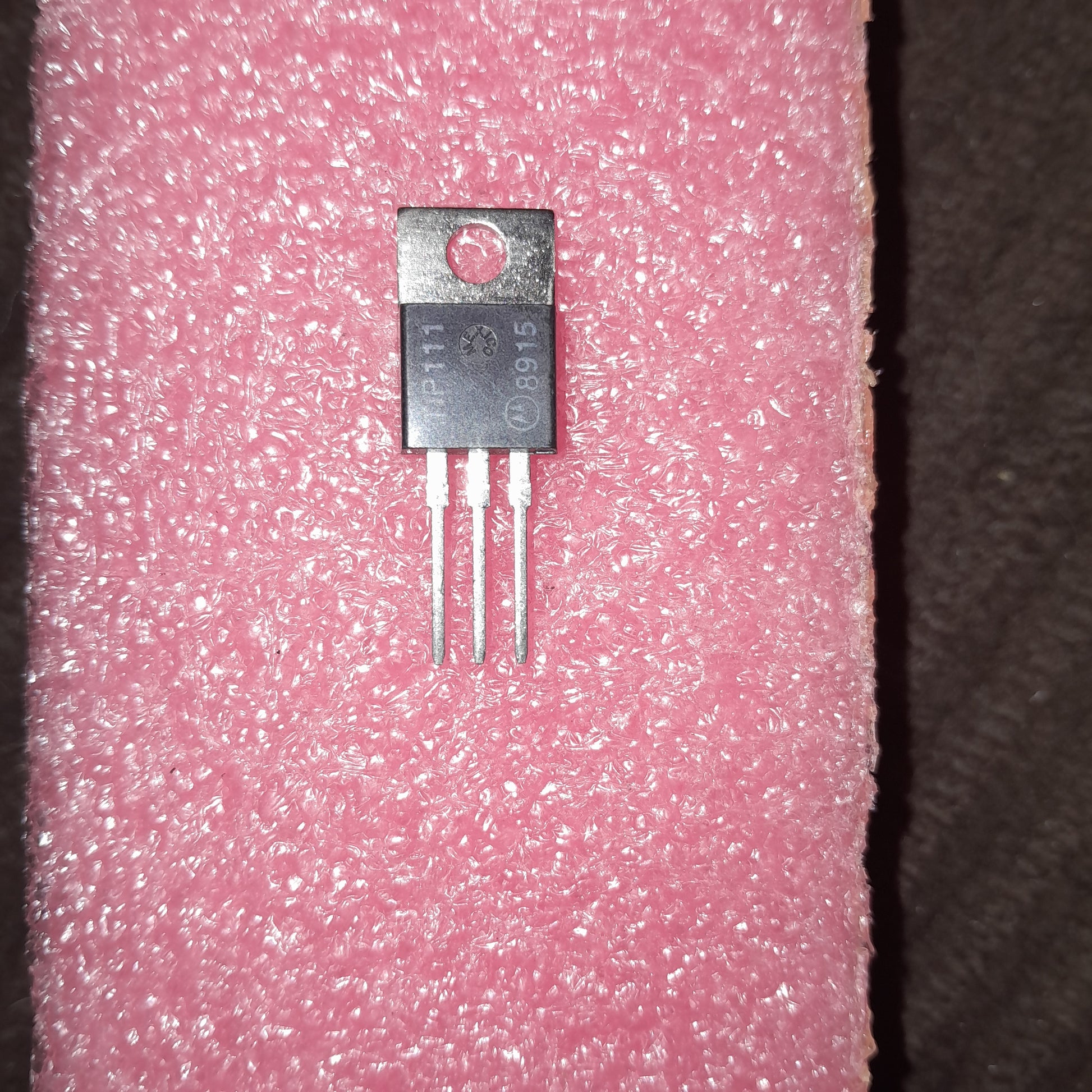

TIP111 NPNDarlington transistor (NOS) pack of 10

The transistor is a powerful and versatile component that excels in switching, amplification, motor control, and relay driver applications. With a high gain of at least 1000 at 1 A and a low input current, this NPN Darlington transistor maximizes efficiency while providing a stable and reliable output. Its sturdy TO-220 package and 80 V collector-emitter and collector-base voltages make it suitable for high-current and high-voltage operations, with a continuous current of 2 A and a peak of 4 A. With a power dissipation of 50 W, this transistor is built to handle demanding tasks.

TIP111 Specifications:
Type: NPNDarlington transistor
Collector-Emitter Voltage (Vce): 80 V
Collector-Base Voltage (Vcb): 80 V
Emitter-Base Voltage (Veb): 5 V
Collector Current (Ic): 2 A continuous, 4 A peak
DC Current Gain (hFE): ≥1000 at 1 A
Power Dissipation: 50 W (with heatsinking)
Package: TO-220 (3-pin, through-hole)
Applications: Switching, amplification, motor control, relay drivers
Features: High gain, low input current
