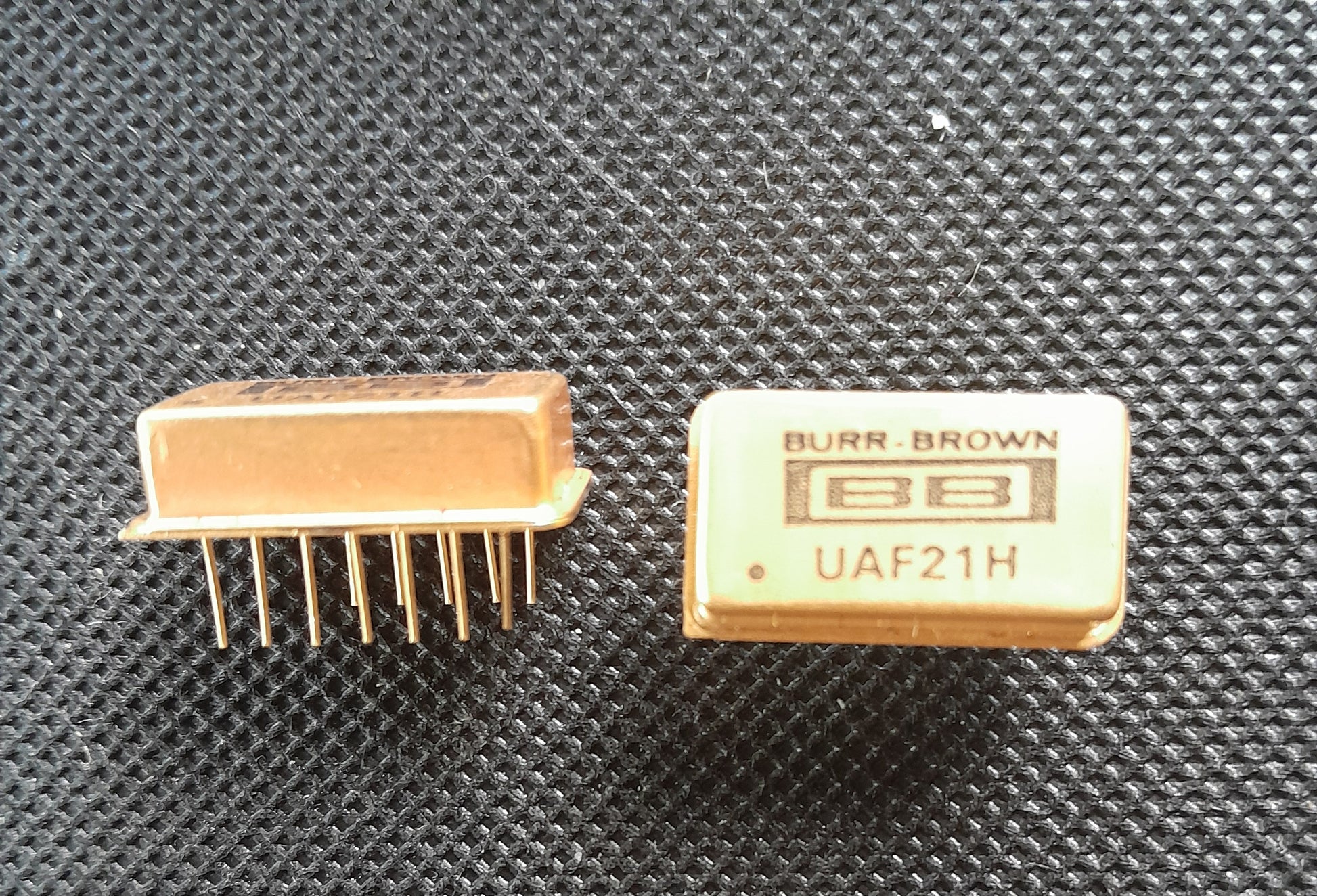

Burr Burns UAF21H Universal Active Filter (NOS GOLD LEEDS)

This Universal Active Filter, with a 2nd order filter order, is designed by Burr-Brown (acquired by Texas Instruments) and operates within a military grade temperature range of -55°C to 125°C. It supports Bessel, Butterworth and Chebyshev filter characteristics and has a nominal supply voltage of ±15V. The DIP package with 14 pins allows for through-hole installation, ensuring reliable power supply.

Manufacturer: Burr-Brown (acquired by Texas Instruments)

Type: Universal Active Filter
Package: DIP (Dual In-line Package), 14 pins
Temperature Grade: Military, operating range from -55°C (-67°F) to 125°C (257°F)
Nominal Supply Voltage: ±15V
Response Type: Universal (supports Bessel, Butterworth, and Chebyshev filter characteristics)
Filter Order: 2nd
Terminal Form: Through-hole
