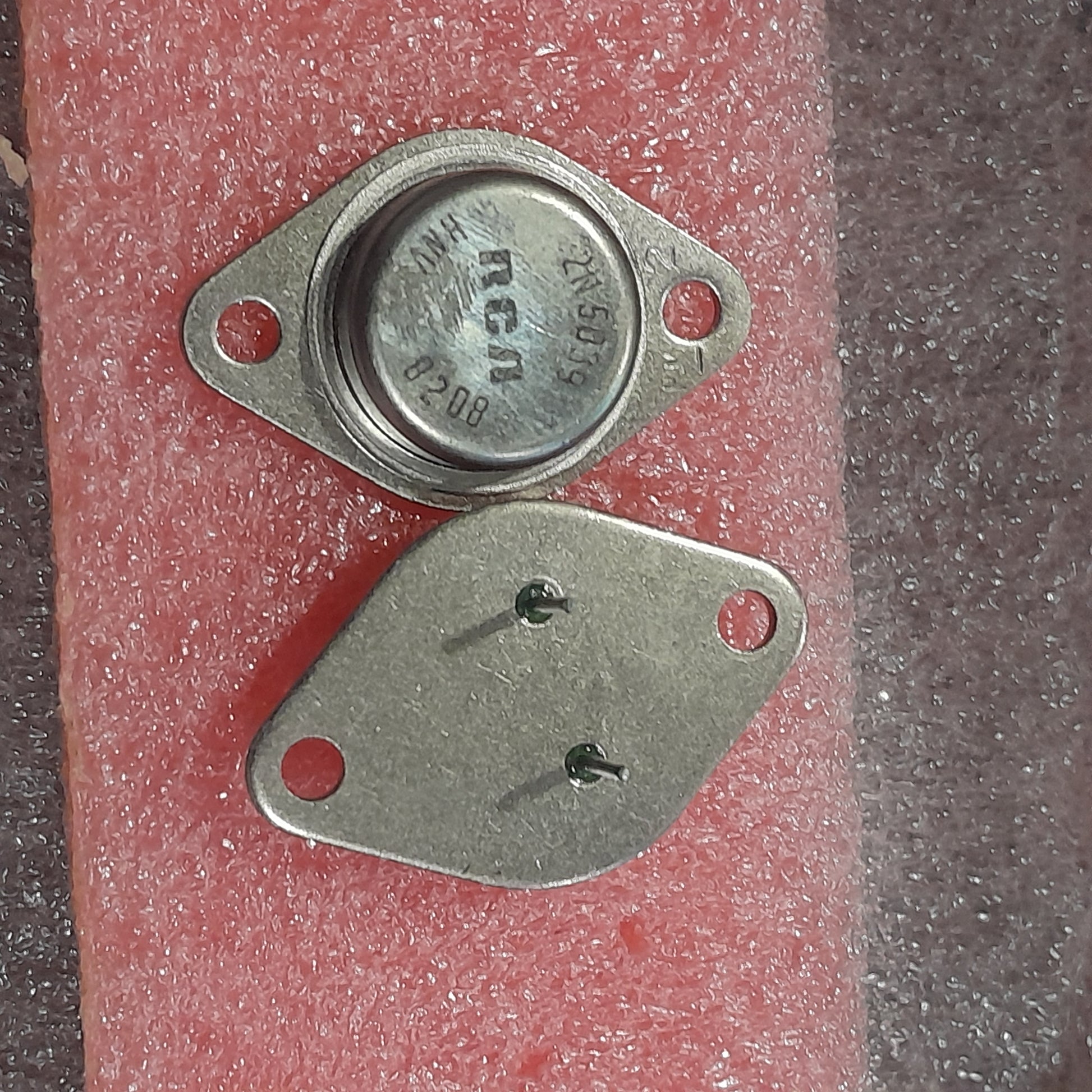

RCA 2N5039 high-speed, high-voltage silicon NPN power switching transistor (NOS)

Key Specifications

​The 2N5039 is a high-speed, high-voltage silicon NPN power switching transistor. It is known for its fast switching characteristics and is suitable for demanding applications.

​Type: NPN Power Transistor

​Voltage Rating: Up to 120V (Collector-Emitter Voltage, Vce)

​Current Rating: Up to 30A (Collector Current, Ic)

​Power Dissipation: Up to 200W

​Package: TO-3 (hermetically sealed metal can)

​Applications

​The 2N5039 is a powerful transistor suitable for use in:

​Switching regulators

​Inverters

​High-power audio amplifiers

​Motor control circuits
