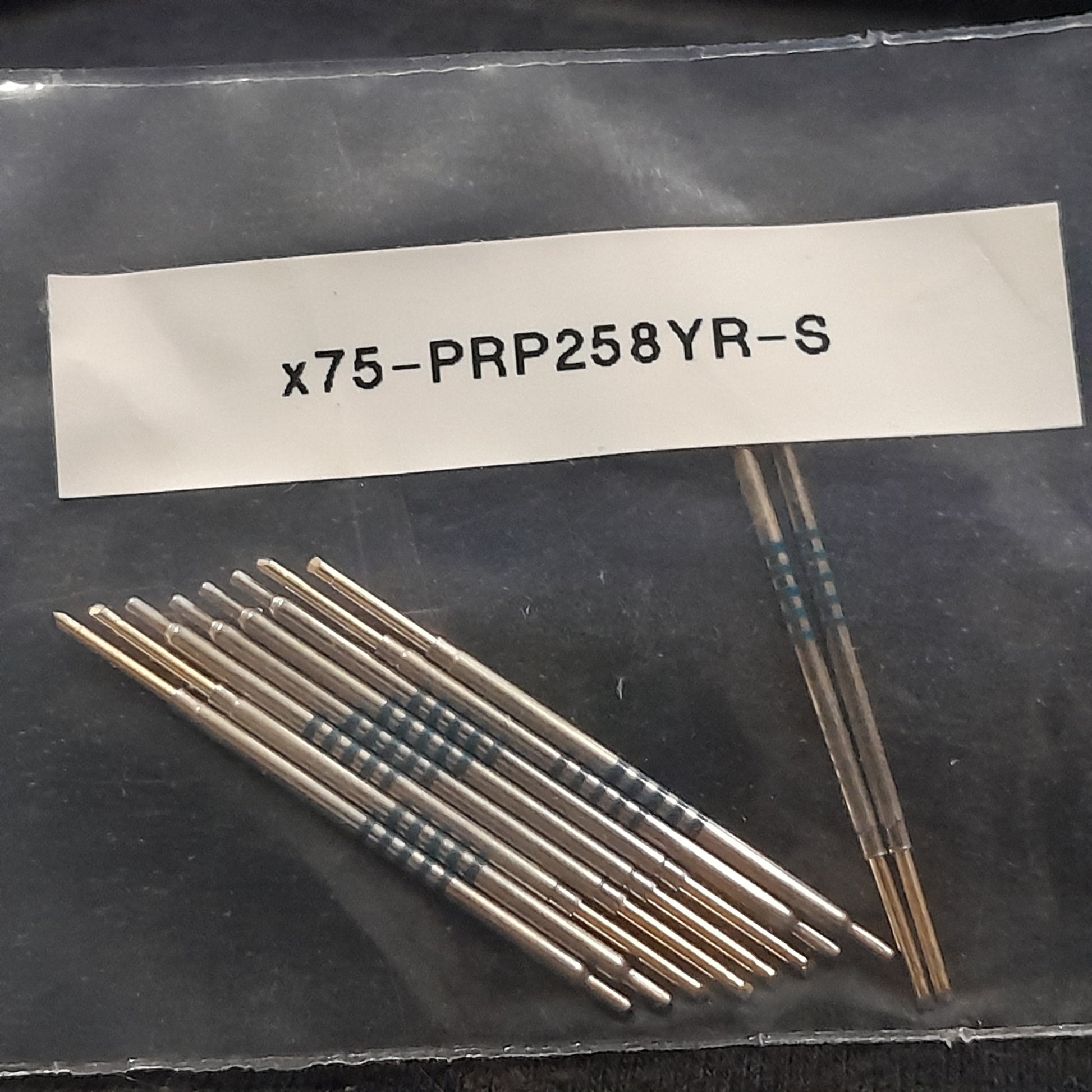

QA Technology X75-25 Series and other X series probe precise center distance of 0.075 inches full stroke length 0.250 inches. elevated spring force 2.3 oz (65 g) full stroke force 8.1 ozf (230 g) (NOS) LOT OF 10

This QA Technology X75-25 Series probe offers a precise probe center distance of 0.075 inches and a full stroke length of 0.250 inches. The elevated spring force of 2.3 ozf (65 g) and full stroke force of 8.1 ozf (230 g) provide accurate and consistent results. Made of nickel silver and precious metal clad for durability.

Product Specifications

 * Manufacturer: QA Technology

 * Series: X75-25 Series

 * Probe Center Distance: 0.075 inches (1.91 mm)

 * Full Stroke Length: 0.250 inches (6.35 mm)

 * Tip Style: The "8Y" in the part number suggests a specific tip style. Based on the manufacturer's catalog, the "Y" indicates an "elevated" spring force. The "8" corresponds to a "Razor" tip style.

 * Spring Force: Elevated ("Y" in the part number). This corresponds to a preload force of 2.3 ozf (65 g) and a force at full stroke of 8.1 ozf (230 g).

 * Material: Nickel silver/ID precious metal clad.
