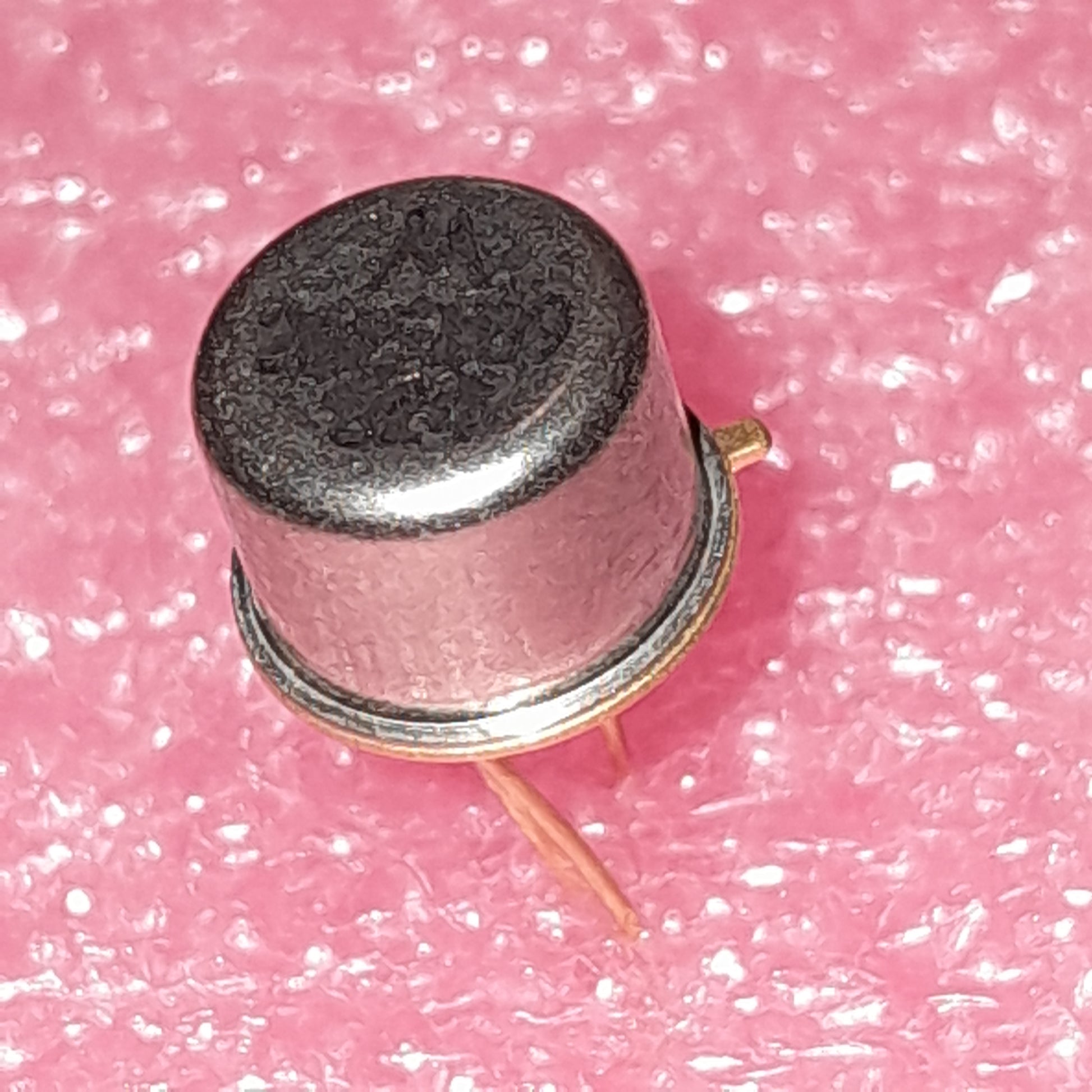

MOTOROLA 2N5019 P-channel Junction Field-Effect Transistor (NOS GOLD LEAD)

The 2N5019 is a P-channel Junction Field-Effect Transistor (JFET) designed for use in applications like analog switches, choppers, and commutators. It is known for its fast switching speed and low on-resistance. The device is typically available in a hermetically sealed TO-18 metal can package, and sometimes in a TO-92 plastic package or SOT23 for surface mounting.

Here are some of the key specifications for the 2N5019:

• Transistor Type: P-Channel JFET

• Gate-Source Breakdown Voltage (BVGSS): 30 V

• Drain-Source Saturation Current (IDSS): Up to -5 mA

• Drain-Source ON Resistance (RDS(ON)): 150 Ω (typical)

• Power Dissipation (PD): 300 mW (TO-18 package)

• Operating Junction Temperature (TJ): -55 to 125 °C
