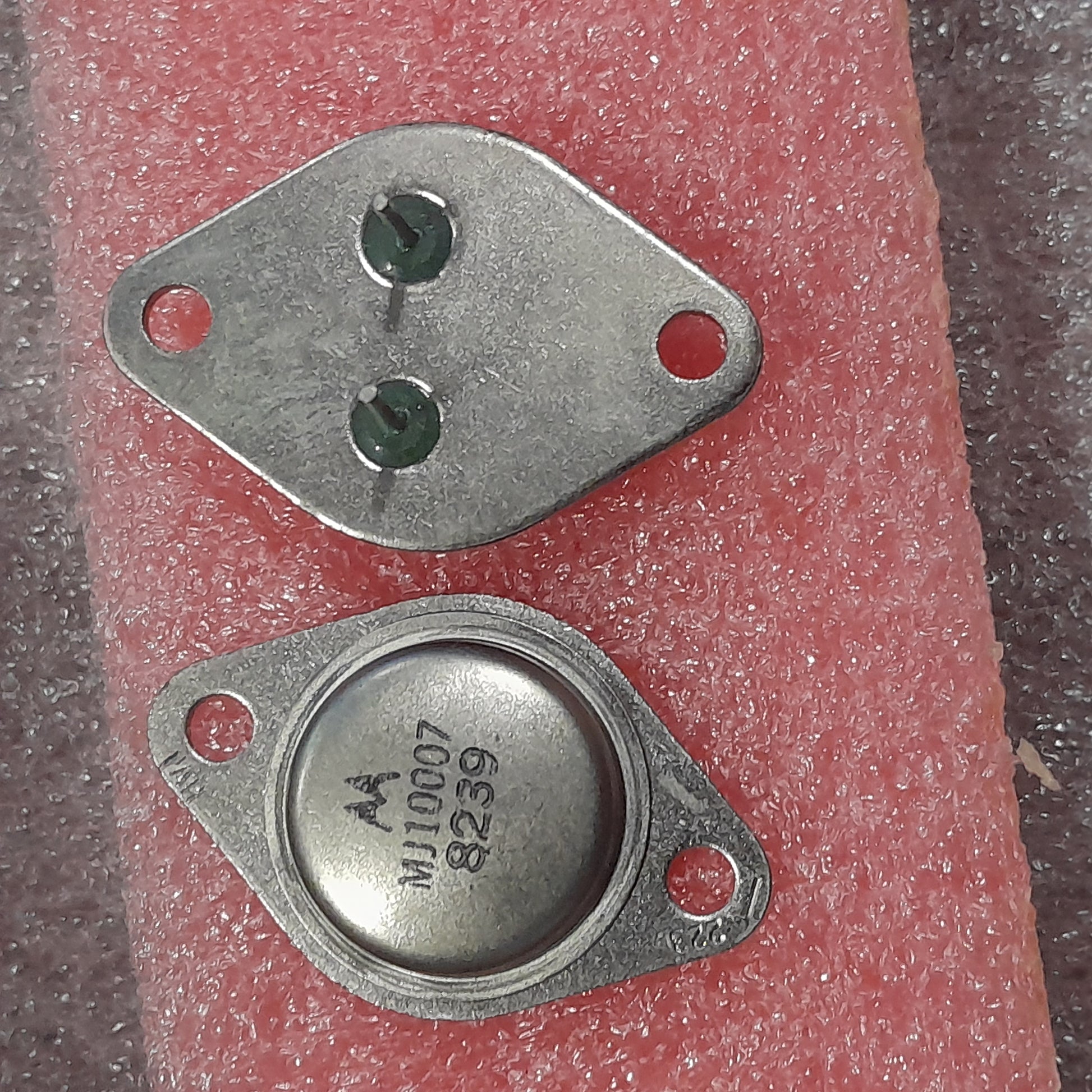

MJ10007 high-voltage, high-current switching transistors (NOS)

The MJ10007 is part of a family of high-voltage, high-current switching transistors. As a Darlington, it provides a very high current gain.

​Type: NPN Darlington Transistor

​Voltage Rating: Up to 450V (Collector-Emitter Voltage, Vce)

​Current Rating: Up to 8A (Collector Current, Ic)

​Power Dissipation: Up to 150W

​Package: TO-3 (Hermetically sealed metal can)

​Applications

​The MJ10007 is a powerful transistor suitable for use in:

​Switching power supplies

​Inverters

​Motor control circuits

​Deflection circuits in CRT displays
