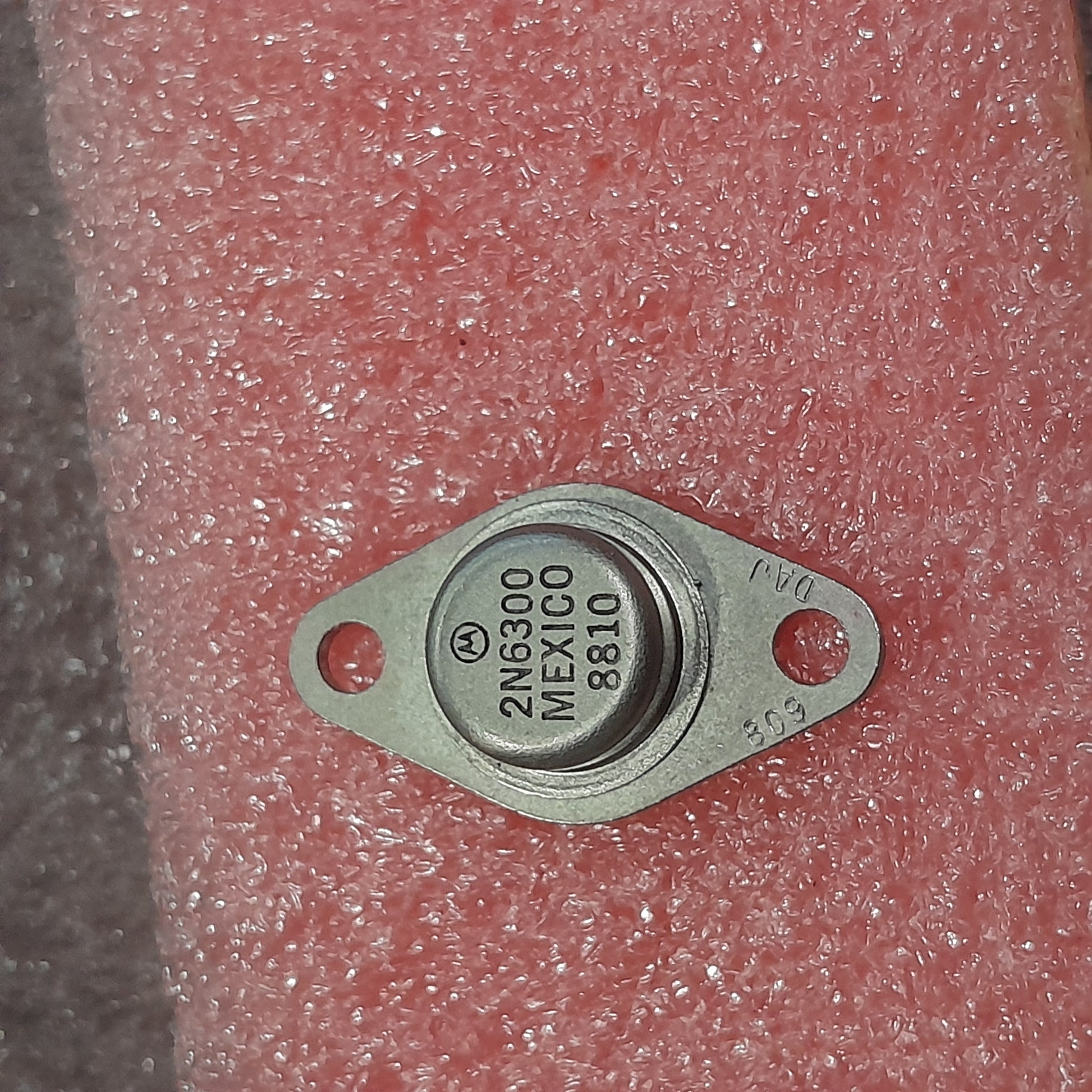

2N6300 high-voltage, high-power silicon NPN transistor (NOS)

Key Specifications

​The 2N6300 is a high-voltage, high-power silicon NPN transistor. It is a robust component suitable for applications that require handling significant power.

​Type: NPN Power Transistor

​Voltage Rating: Up to 300V (Collector-Emitter Voltage, Vce)

​Current Rating: Up to 16A (Collector Current, Ic)

​Power Dissipation: Up to 175W

​Package: TO-3 (hermetically sealed metal can)

​Applications

​The high voltage and current ratings of the 2N6300 make it suitable for use in:

​High-power audio amplifiers

​Switching power supplies

​Inverters

​Motor control circuits
