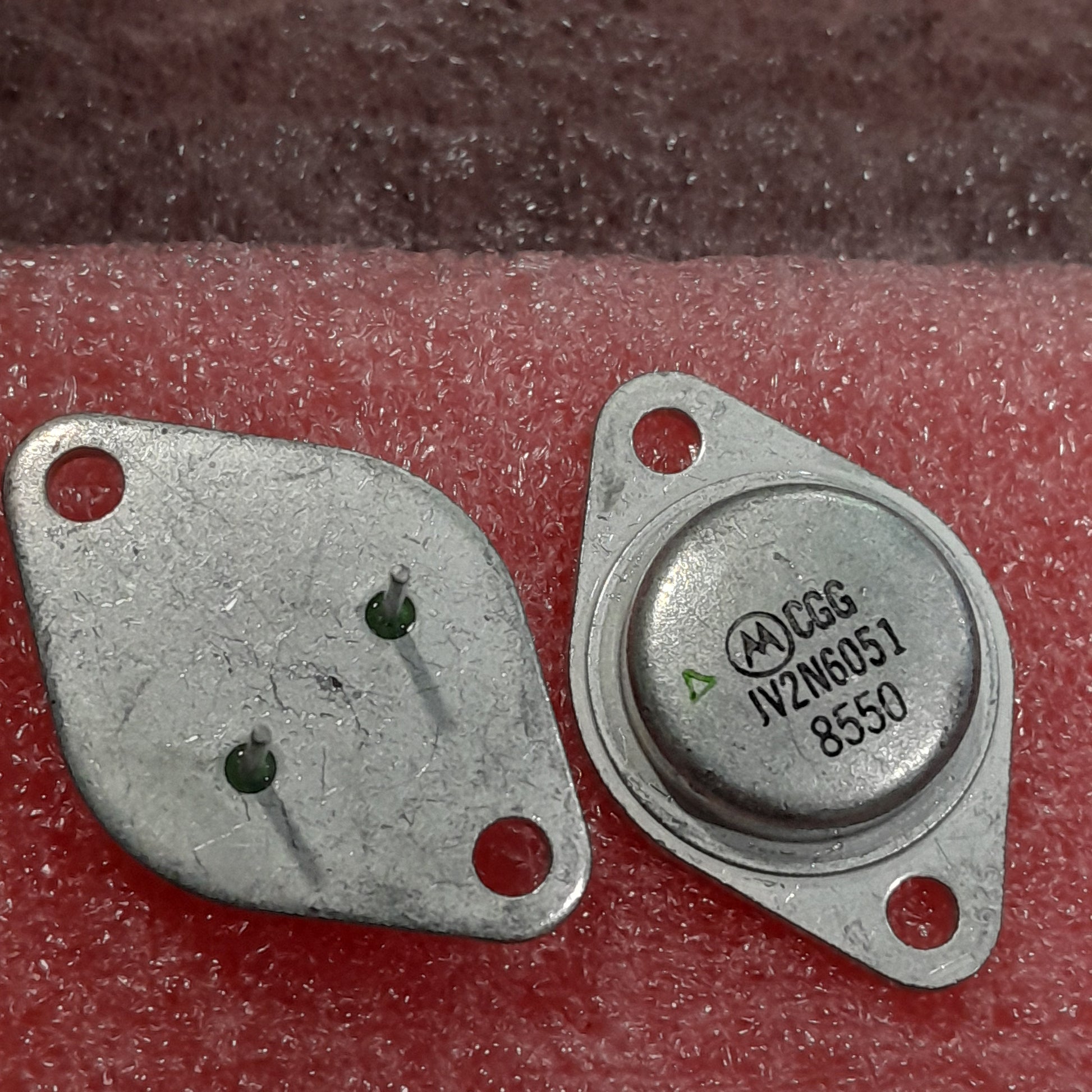

JV2N6051 Darlington transistor made by Motorola. TO-3 metal can package, (NOS)

JV2N6051 Darlington transistor made by Motorola. It is housed in a TO-3 metal can package, which is designed for high-power applications.

​Specifications

​The JV2N6051 is a silicon NPN Darlington power transistor. A Darlington pair consists of two bipolar junction transistors (BJTs) configured to provide a very high current gain (beta), making it ideal for applications that require a large amount of current amplification from a small input signal.

​Type: NPN Darlington Transistor

​Voltage Rating: Up to 100V (Collector-Emitter Voltage, Vce)

​Current Rating: Up to 16A (Collector Current, Ic)

​Power Dissipation: Up to 150W

​Package: TO-3 (Hermetically sealed metal can)

​Applications

​Given its high current and power ratings, the 2N6051 is commonly used in applications such as:

​Power switching circuits

​High-current linear regulators

​Amplifier output stages

​Motor drivers
