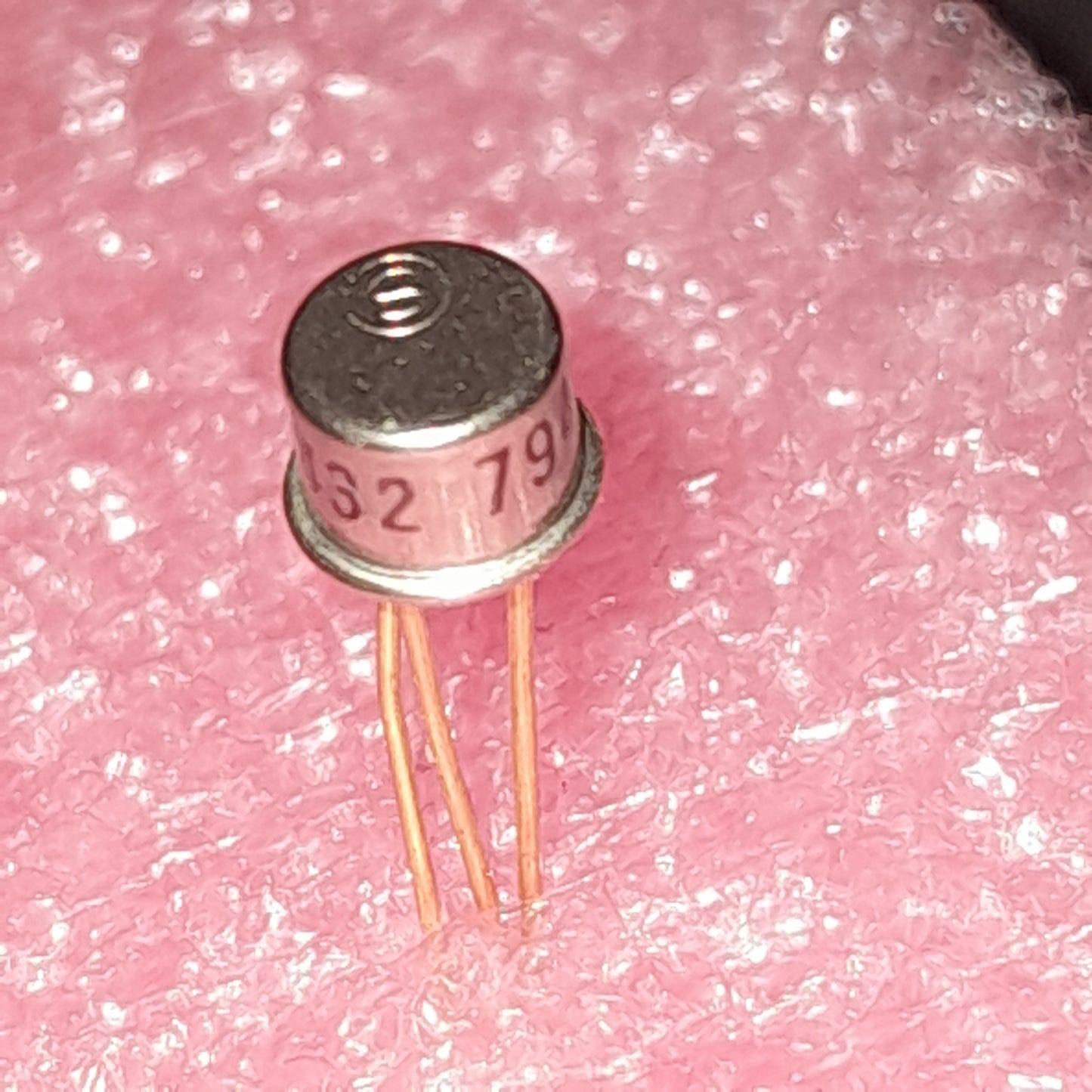

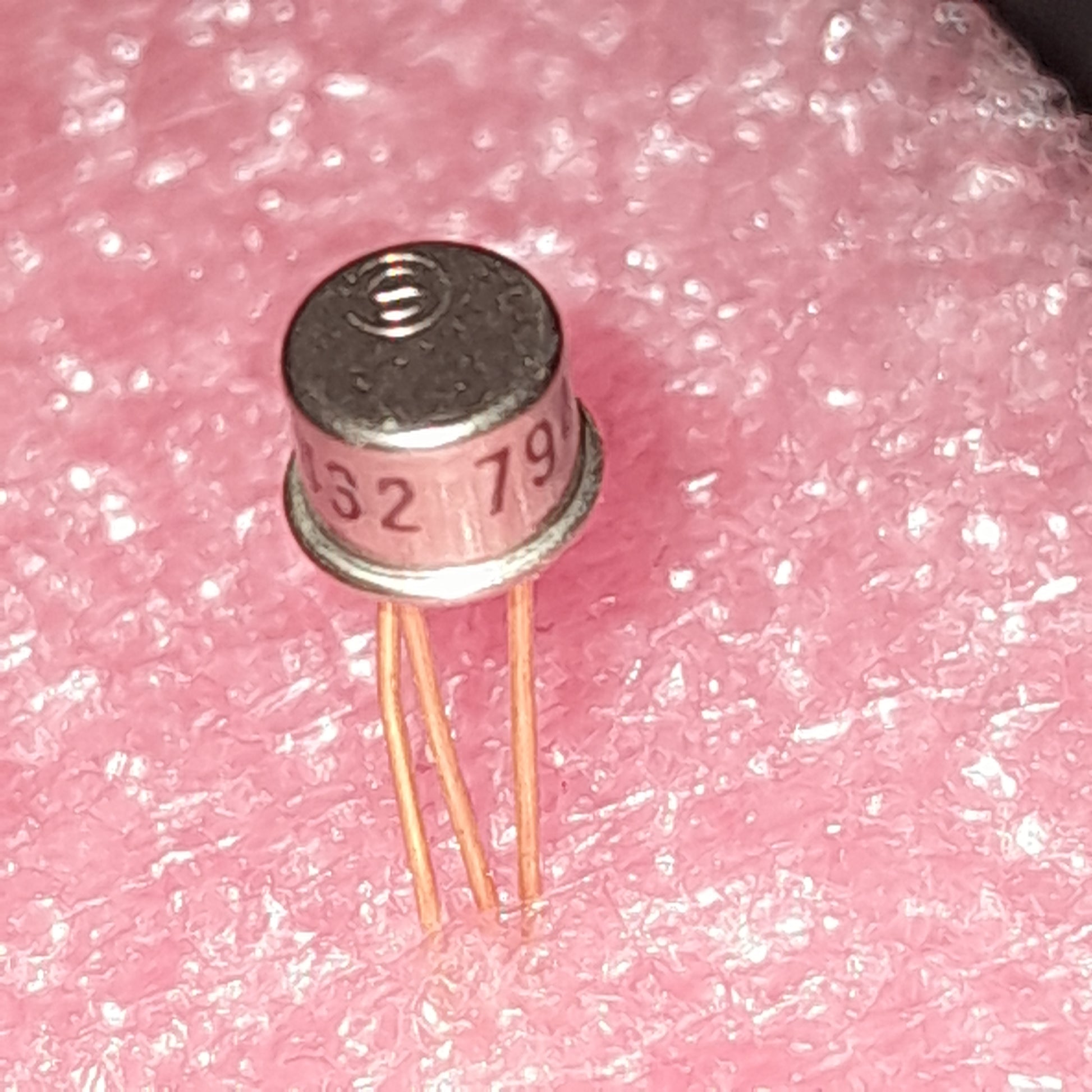

2N5432 N-channel silicon junction field-effect transistor (NOS GOLD LEAD)

The 2N5432 is an N-channel silicon junction field-effect transistor (JFET) designed for analog switching and amplifier applications. It is known for its fast switching speed, low on-resistance, and low cutoff current. This transistor is typically found in a hermetic TO-52 metal can package.

Here are some of its key specifications:

• Transistor Type: N-Channel JFET

• Gate-Source Breakdown Voltage (VGSS): -25 V

• Gate-Source Cutoff Voltage (VGS(off)): -4 V to -10 V

• Continuous Drain Current (ID): 10 mA (with some sources mentioning a drain saturation current of up to 150 mA at VGS=0)

• Drain-Source ON Resistance (rDS(on)): 5 Ω

• Power Dissipation (PD): 300 mW (at TA=25∘C)

• Switching Time (Turn-on): 2.5 ns
