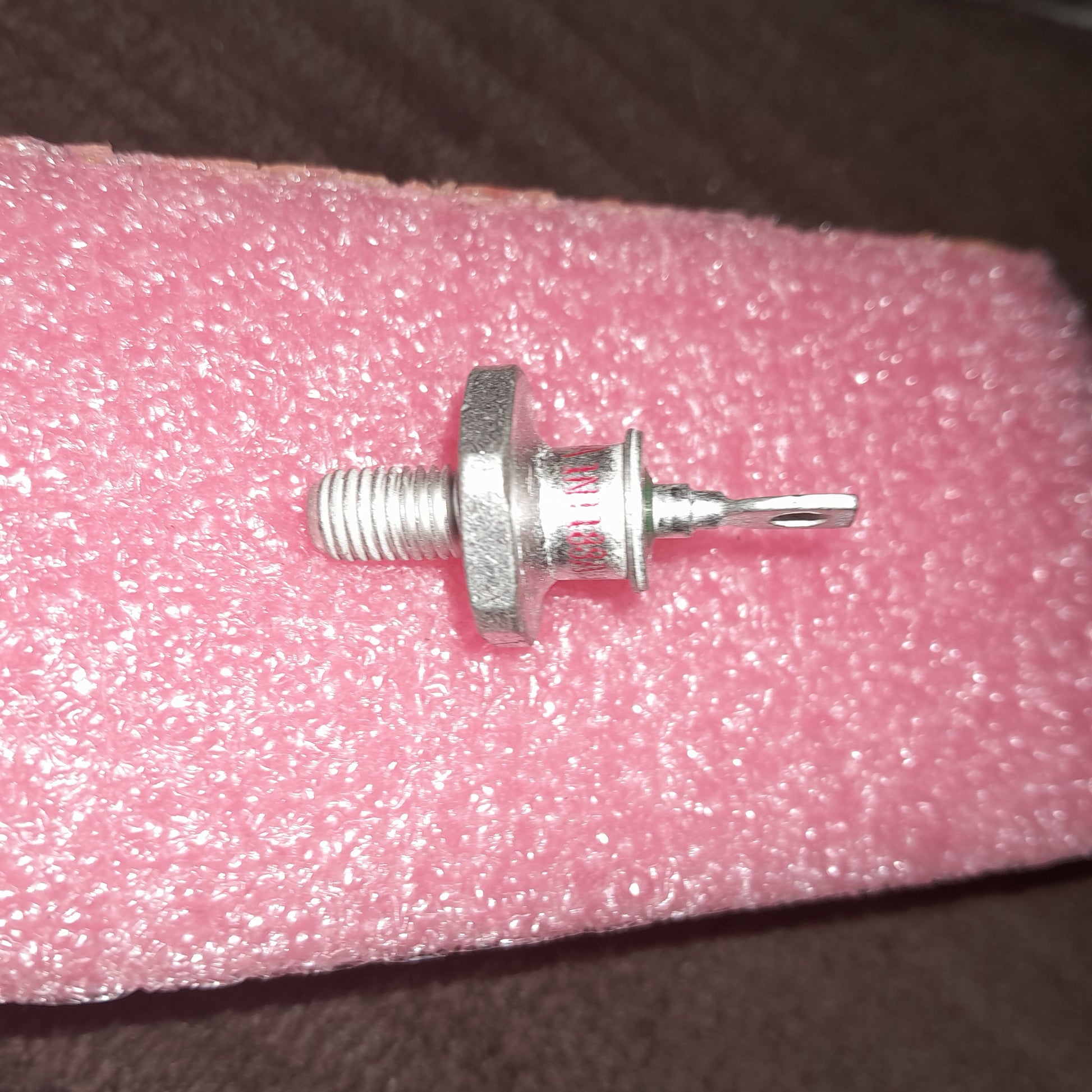

1N1188A power rectifier diode efficiently converts AC power to DC power, (NOS)

This power rectifier diode efficiently converts AC power to DC power, allowing for a consistent flow of current in one direction. With a maximum repetitive peak reverse voltage of 400 V, average rectified current of 40 A, and surge current of 800 A, this diode is a reliable and powerful choice. Its DO-203AB package is designed for optimal heat dissipation.

Identification & Key Specs

 * Part Type: Power Rectifier Diode

 * Function: Converts AC power to DC power. It allows current to flow in one direction but blocks it in the reverse direction.

 * Key Specs:

   * Maximum Repetitive Peak Reverse Voltage (V_{RRM}): 400 V

   * Average Rectified Current (I_F): 40 A

   * Forward Voltage Drop (V_F): Typically 1.3 V at a given forward current (e.g., 126 A)

   * Surge Current (I_{FSM}): 800 A

   * Package/Case: DO-203AB (also known as DO-5), which is a stud-mount package designed for heat dissipation.
